OHSF9770 (150~200W) Led Flood Light factory light
//www.ohuilighting.com/uploadfiles/128.1.164.27/webid1436/source/202403/03964171092043010.png
  • OHSF9770 (80~200W) Flood Light
  • OHSF9770 (80~200W) Flood Light
  • OHSF9770 (80~200W) Flood Light
  • OHSF9770 (80~200W) Flood Light
  • OHSF9770 (80~200W) Flood Light

OHSF9770 (150~200W) Led Flood Light factory light

Range of application:■ Widely used for high-efficiency lighting in petroleum, chemical, aviation, ship, food, medicine, warehouse and other places;
■ It could work for strong acid, strong alkali, salt, ammonia, chloride ion, corrosion, water, dust, moisture and other environment;
■ It could work for places with high protection requirements and poor environment;
■ It could for energy saving renovation projects and difficult places for maintenance and replacement.


Product Features


Heat dissipation: The modular design selects multiple combinations for different application scenarios, and adopts hollow convection heat dissipation to further improve the heat dissipation performance of the lamps.


Configuration: It adopts imported LED light source, with an average service life of up to 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, and has short-circuit and over-voltage protection functions, which greatly prolongs the service life of the lamps.

Protection: It adopts imported aluminum material for die-casting. The strength and thermal conductivity of the component are simultaneously provided. The surface is treated with polymer nano-spraying to improve the salt spray corrosion resistance of the lamp. The protection level of the lamp body is IP66, the protection level can reach WF2, and the surface of the lamp body can ensure long-term use without rust.

Light distribution: high precision, high permeability, optical grade raw material lens, narrow light distribution, medium light distribution, wide light distribution, etc., can be selected according to different lighting needs to improve the working surface illumination quality.

Installation: Patented U-frame anti-skid and anti-vibration angle control device, with precise angle control and simple adjustment of single tool. It is easy to install and route for various installation methods such as sitting type, wall type, ceiling type for floodlighting.


Product Parameters


Item

Symbol

Description

Unit



Rated Voltage

VOLT

AC220

V

Power

P

150-200

W

Protection Level

IP

IP65

IP

Lighting Angle

θ

60/90

°

LED Quantity

/

192

PCS

Base Specifications

/

CERR3030


Anticorrosion Grade

/

WF2


Light Efficiency

η

120

Lm/W

Frequency

f

50/60

Hz

Power Factor

PF

0.95

PF

Operating Temperature

TOPR

-30~50

Storage Temperature

TOPR

-30~50

Light Source

/

led

PCS

Correlate Color Temperature

Tc

3000-6500

K

Color Rendering Index

CRI

≥70

RA

LED'S Operating Life

LIFE

100000

Hours

Start-up Time

T

≤0.2

S

Executive Standard

/

GB 7000.1GB 7000.201


Weight

/

3.9

KG

Size

/

339x260x105

mm

Test Report

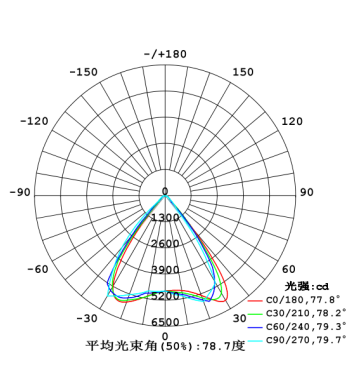

Light Distribution Diagram

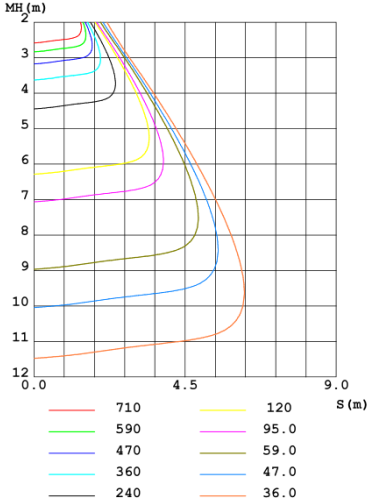

Illuminance Figure



Light Distribution DiagramIlluminance Figure

Dimensions






Install
