OHSF9770 (320~400W) Led Flood Light factory light
//www.ohuilighting.com/uploadfiles/128.1.164.27/webid1436/source/202403/4636817109221724.png
  • OHSF9770 (320~400W) Led Flood Light factory light
  • OHSF9770 (320~400W) Led Flood Light factory light
  • OHSF9770 (320~400W) Led Flood Light factory light
  • OHSF9770 (320~400W) Led Flood Light factory light
  • OHSF9770 (320~400W) Led Flood Light factory light

OHSF9770 (320~400W) Led Flood Light factory light

Range of application:■ Widely used for high-efficiency lighting in petroleum, chemical, aviation, ship, food, medicine, warehouse and other places;
■ It could work for strong acid, strong alkali, salt, ammonia, chloride ion, corrosion, water, dust, moisture and other environment;
■ It could work for places with high protection requirements and poor environment;
■ It could for energy saving renovation projects and difficult places for maintenance and replacement.


Product Features


Heat dissipation: Modular design chooses a variety of combinations for different application scenarios, uses hollow convective heat dissipation, and further improves the heat dissipation performance of lamps.


Configuration: Using imported LED light source, the average service life is as long as 100,000 hours. The power supply adopts wide voltage processing, which can achieve constant current output. It has the function of short circuit and over voltage protection, and greatly enhances the service life of lamps and lanterns.

Protection: Die-casting with imported aluminium material. The strength and thermal conductivity of the components are at the same time. The surface is treated by macromolecule nano-spraying, which improves the salt spray corrosion ability of lamps. The anti-corrosion grade reaches WF2. The protection grade of the lamp body is IP66. The surface of the lamp body is never corroded and stainless.

Light distribution: With high precision, high permeability, optical grade raw material lens, narrow light distribution, medium light distribution, wide light distribution and other types of light distribution angle, we can choose according to different lighting needs to improve the quality of working surface illumination.


Installation mode: The patent U-frame anti-skid and anti-seismic angle control device has the characteristics of precise angle control and simple adjustment with single tool. The installation and wiring are simple and convenient for various installation modes such as seat type, side wall, ceiling suction and so on.


Product Parameters


Item

Symbol

Description

Unit



Rated Voltage

VOLT

AC220

V

Power

P

320-400

W

Protection Level

IP

IP65

IP

Lighting Angle

θ

60/90

°

LED Quantity

/

384

PCS

Base Specifications

/

CERR3030

Anticorrosion Grade

/

WF2

Light Efficiency

η

120

Lm/W

Frequency

f

50/60

Hz

Power Factor

PF

0.95

PF

Operating Temperature

TOPR

-30~50

Storage Temperature

TOPR

-30~50

Light Source

/

led

PCS

Correlate Color Temperature

Tc

3000-6500

K

Color Rendering Index

CRI

≥70

RA

LED'S Operating Life

LIFE

100000

Hours

Start-up Time

T

≤0.2

S

Executive Standard

/

GB 7000.1GB 7000.201

Weight

/

11.2

KG

Size

/

637x260x102

mm

Test Report

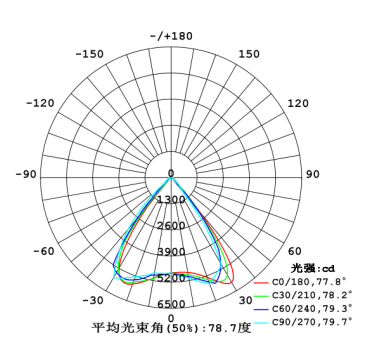

Light Distribution Diagram

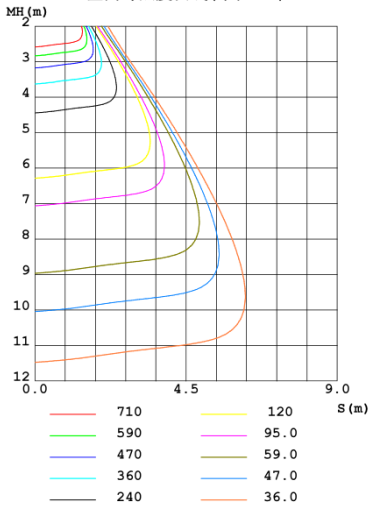

Illuminance Figure

Light Distribution Diagram

Illuminance Figure


Dimensions






Install
